Rotary Joint

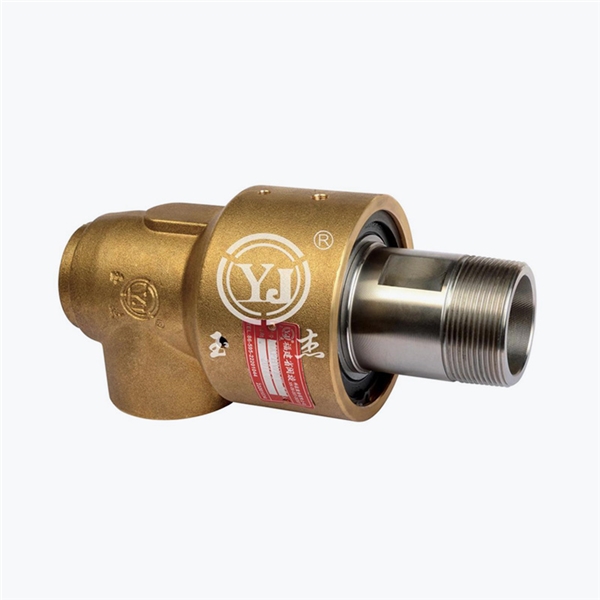

MXPH Rotary Joint (Mono Flow)

Model：MXPH
Outer pipe：Thread connection or flange connection
Feature：Plane sealing design; Standard antimony impregnated graphite or carbon graphite sealing technology; Balance design of metalloid composite or metalloid friction pairs; Single spring design; Self-supporting design; Double bearing spacing support; Copper alloy shell; Mono-flow and dual-flow design; Low torque.

Technical Parameter：

Media	Water、Oil
Max.Temperature	≤120℃（Water）、≤260℃（Oil）
Max.Pressure	≤1.0MPa
Max.Speed	≤1500rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

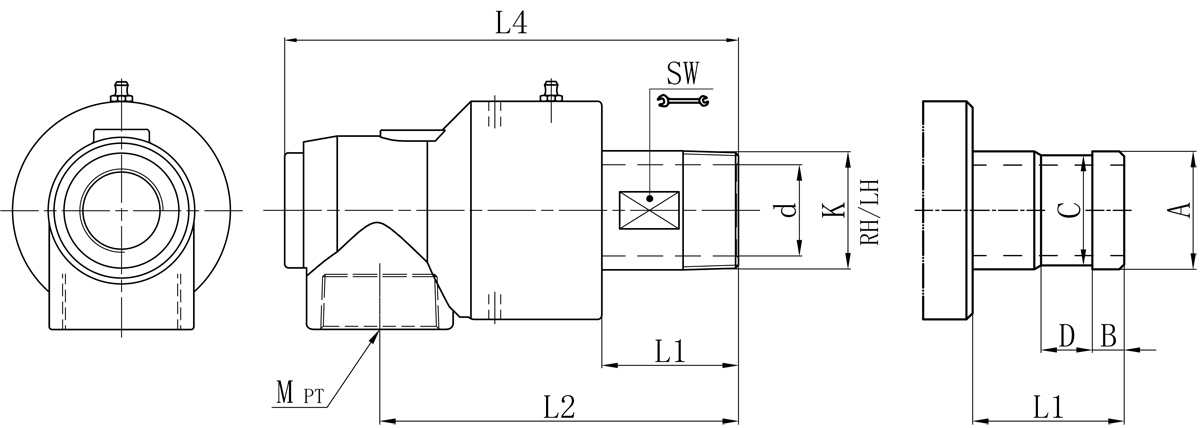

Dimensions

CA88(中国区)有限公司官网 - 首页

Model	K	I	d	L1	L2	L4	SW	Flange outer tube size control table
								A	B	C	D
50A	R2"	Rp2”	46	69	181	220	57	60	16	57	24

We offer customized products if special sizes.
Specifications are subject to change without notice.
